High energy laser beam is generated by a laser, focused by an optical system, and irradiated onto the surface of the workpiece, causing the material to rapidly melt and form a welded joint
Boost your production speed and welding precision with our Laser Welding Machine, designed for manufacturers who demand consistent results with minimal downtime.
Engineered with cutting-edge laser technology, this high-performance welding machine delivers exceptional welding speed, deep penetration, and clean, high-strength welds on a variety of metals, including stainless steel, carbon steel, aluminum, and copper.
Whether you're upgrading your fabrication line or seeking a cleaner, more energy-efficient solution, our Laser Welding Machine With High Efficiency gives you the edge with unmatched reliability, speed, and quality.
Model No.
AOK-W350
AOK-W350H
AOK-W500H
Max laser power
350W
350W
500W
Handheld welder
Not Included
Included
Included
Working Table Size
2200X1700mm
Laser wave length
1064nm
Monopulse Max power
110J
Laser welding depth
0.1-3mm
Pulse width
0.1-20ms
Laser welding frequency
1-100Hz
Laser spot size adjusting range
0.2-5.0mm
Whole power consumption
≤7.5KW
Power need
220V±10%/50Hz/40A

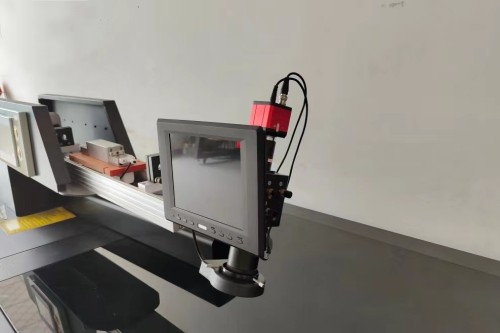

Sight positioning
CCD synchronism high definition camera
Laser device vertical travel
≥200mm
Laser device horizontal direction
200-800mm
Dimension
1700*1300*1300
Packing size
1.75*1.24*1.35 mm ( 2.9m³)
Weight
320kgs
