Laser Welding Machine AOK-W350H

Description:

The AOK-W350H Laser Welding Machine is a state-of-the-art industrial laser system designed for high-precision welding across various metal materials. Engineered for durability, speed, and accuracy, the W350H model offers a powerful 350W laser source combined with an ergonomic design and intuitive control system, making it ideal for both small-scale, detailed work and high-volume production tasks.



Applications:

  • Automotive components
  • Metal kitchenware and bathroom fixtures
  • Electronic enclosures
  • Sheet metal fabrication
  • Jewelry and decorative welding
  • Battery and sensor welding
  • Tool and die repair

Why Choose AOK-W350H?

Whether you're upgrading your factory’s welding capabilities or starting a new precision manufacturing operation, the AOK-W350H delivers outstanding results. With reduced post-processing, low heat input, and excellent seam quality, it stands out as a reliable and efficient solution in modern metalworking industries.

Model No.

AOK-W350

AOK-W350H

AOK-W500H

Max laser power

350W

350W

500W

Handheld welder

Not Included

Included

Included

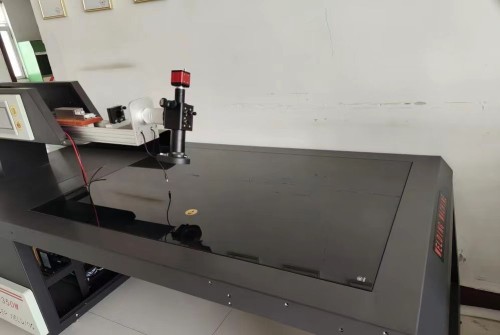

Working Table Size

2200X1700mm

Laser wave length

1064nm

Monopulse Max power

110J

Laser welding depth

0.1-3mm

Pulse width

0.1-20ms

Laser welding frequency

1-100Hz

Laser spot size adjusting range

0.2-5.0mm

Whole power consumption

≤7.5KW

Power need

220V±10%/50Hz/40A

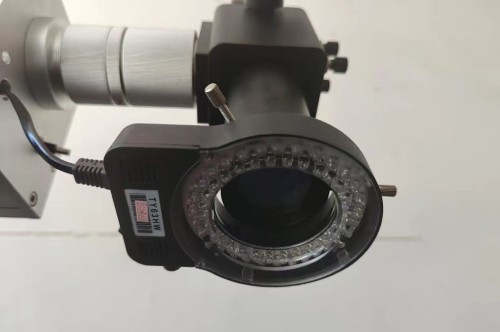

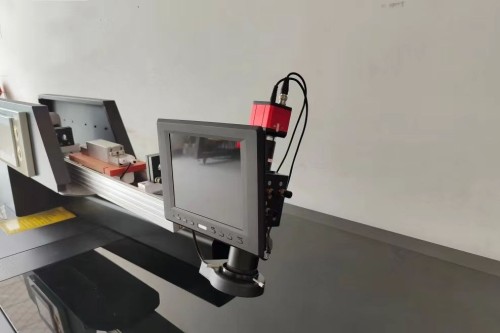

Sight positioning

CCD synchronism high definition camera

Laser device vertical travel

≥200mm

Laser device horizontal direction

200-800mm

Dimension

1700*1300*1300

Packing size

1.75*1.24*1.35 mm  ( 2.9m³)

Weight

320kgs
