Laser Welding Machine AOK-W500H

Description:

Looking for a welding machine that can keep up with your growing production needs without compromising on precision? Say hello to the AOK-W500H Laser Welding Machine, your new go-to for fast, clean, and reliable welding.

This 500W fiber laser machine isn’t just powerful; it’s smart. With advanced controls that allow you to fine-tune your weld settings in real time, it adapts to various materials, including stainless steel, carbon steel, aluminum, and more. Whether you’re working on thin metal sheets or intricate components, the AOK-W500H delivers strong, smooth welds with minimal post-cleanup required.

One of the best things? It’s easy to use. The ergonomic handheld welding gun makes even long shifts more comfortable, while the user-friendly interface keeps things simple, even if you're not a tech expert. Additionally, the air-cooled design helps prevent overheating, allowing you to weld for more extended periods without worrying about downtime.

Why You'll Love It:

  • • Clean, high-strength welds without warping or discoloration
  • • Super flexible, perfect for everything from custom jobs to mass production
  • • Fast and efficient, helping you save time and boost output
  • • Built tough to last in busy workshop environments
  • • Optional wire feeder if you want to tackle more advanced jobs



If you’re ready to step up your welding game, the AOK-W500H is the kind of tool you’ll wonder how you ever worked without. It’s modern, reliable, and built to help you get more done faster.


Model No.

AOK-W350

AOK-W350H

AOK-W500H

Max laser power

350W

350W

500W

Handheld welder

Not Included

Included

Included

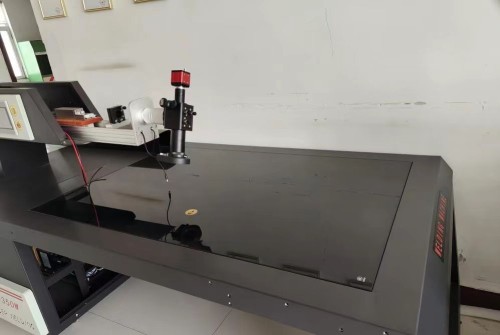

Working Table Size

2200X1700mm

Laser wave length

1064nm

Monopulse Max power

110J

Laser welding depth

0.1-3mm

Pulse width

0.1-20ms

Laser welding frequency

1-100Hz

Laser spot size adjusting range

0.2-5.0mm

Whole power consumption

≤7.5KW

Power need

220V±10%/50Hz/40A

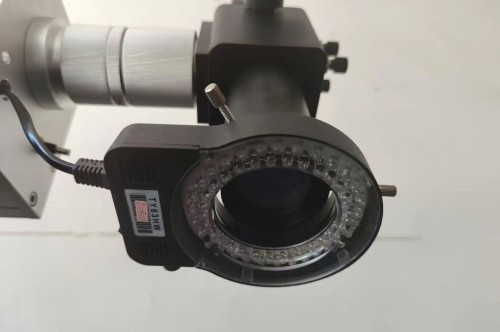

Sight positioning

CCD synchronism high definition camera

Laser device vertical travel

≥200mm

Laser device horizontal direction

200-800mm

Dimension

1700*1300*1300

Packing size

1.75*1.24*1.35 mm  ( 2.9m³)

Weight

320kgs
