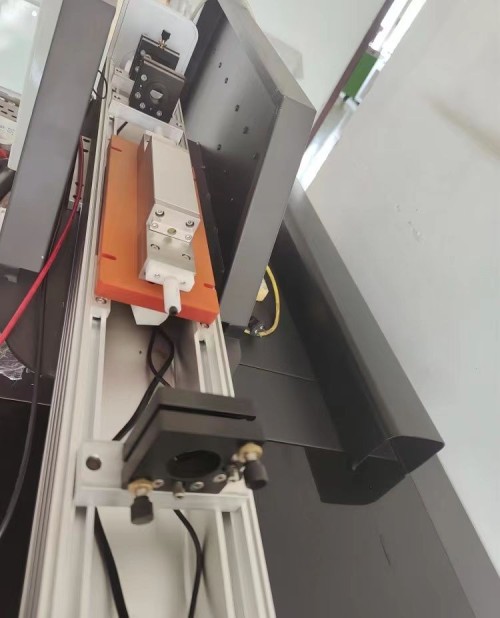

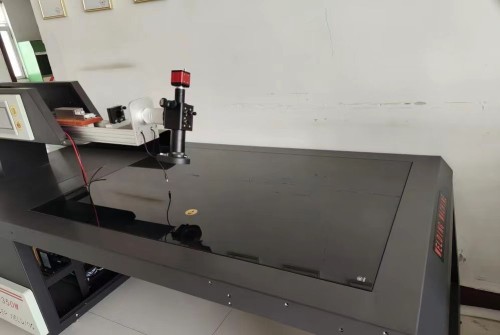

Laser Welding Machine AOK-W350

Description:

The AOK-W350 Laser Welding Machine is a high-performance fiber laser welding system designed to deliver unmatched precision, speed, and reliability. Built for industrial-grade applications, the AOK-W350 is ideal for joining various metal materials with minimal heat distortion and high structural integrity. Whether you're working with stainless steel, aluminum, copper, or carbon steel, this machine guarantees strong, clean welds that require little to no post-processing.

Key Features:

  • 🔹 350W High-Power Fiber Laser: Ensures deep penetration and consistent welding performance across a range of metals.
  • 🔹 Advanced Cooling System: Efficient water-cooling unit to maintain optimal working temperature and extend machine lifespan.
  • 🔹 User-Friendly Interface: Intuitive digital control panel with precise settings for voltage, pulse width, and frequency.
  • 🔹 High-Speed Welding Capability: Increase production efficiency with welding speeds up to 120 mm/s.
  • 🔹 Compact & Durable Design: Space-saving structure with industrial-grade components for long-term stability.


Model
No.

AOK-W350

AOK-W350H

AOK-W500H

Max laser power

350W

350W

500W

Handheld welder

Not Included

Included

Included

Working Table Size

2200X1700mm

Laser wave length

1064nm

Monopulse Max power

110J

Laser welding depth

0.1-3mm

Pulse width

0.1-20ms

Laser welding frequency

1-100Hz

Laser spot size adjusting range

0.2-5.0mm

Whole power consumption

≤7.5KW

Power need

220V±10%/50Hz/40A

Sight positioning

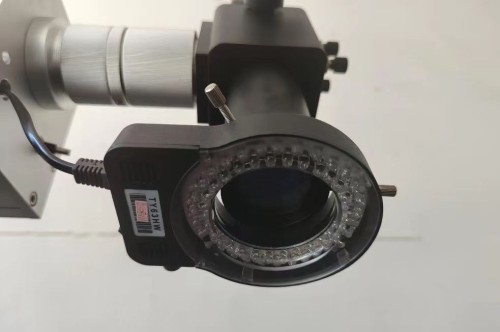

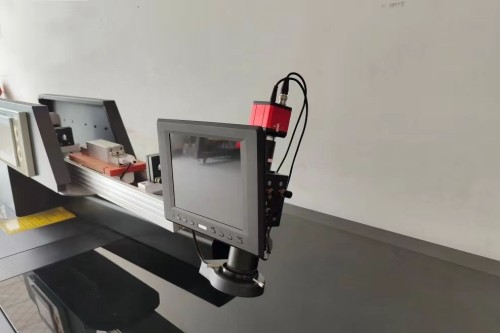

CCD synchronism high definition camera

Laser device vertical travel

≥200mm

Laser device horizontal direction

200-800mm

Dimension

1700*1300*1300

Packing size

1.75*1.24*1.35 mm  ( 2.9m³)

Weight

320kgs
